Two Stage 5-12 Bar Screw Air Compressor

Two-stage fixed speed and PM+VFD screw compressor range for regular and low-pressure applications with improved free air delivery.

  • Power: 22 kW - 315 kW
  • Pressure: 5/8/10/13 bar catalog range
  • Type: Two Stage Fixed Speed and PM+VFD Screw Air Compressor
  • Air-end: Two-stage air-end for more free air delivery at the same power
  • Cooling: Optimized cooling system with separated cold and hot areas

System Advantages

Low air-end speed helps longer service life and reduces overheating risk.

Independent fan for the electrical box supports inverter and electrical component stability.

Centrifugal fan design is shown for lower noise and higher cooling volume.

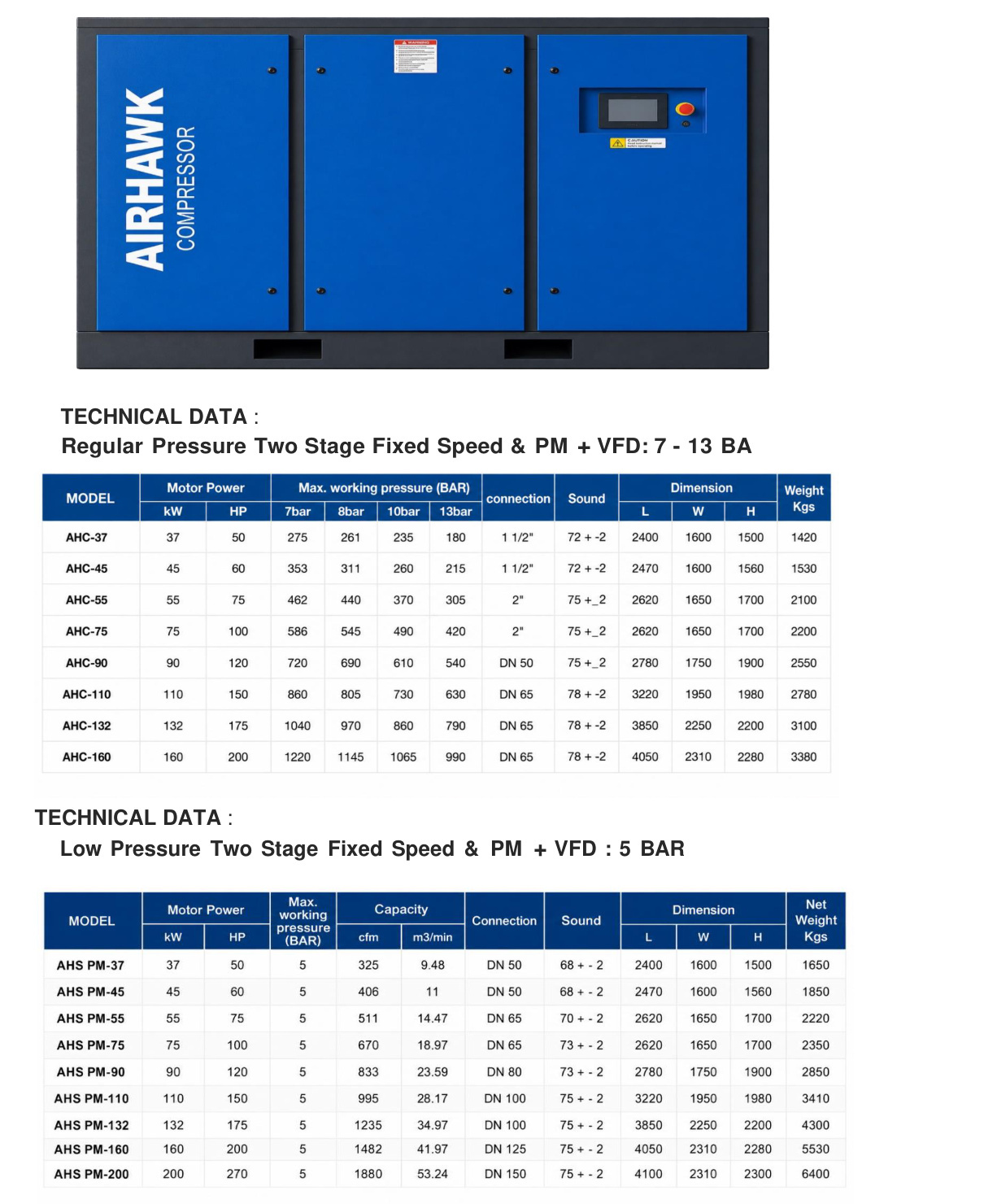

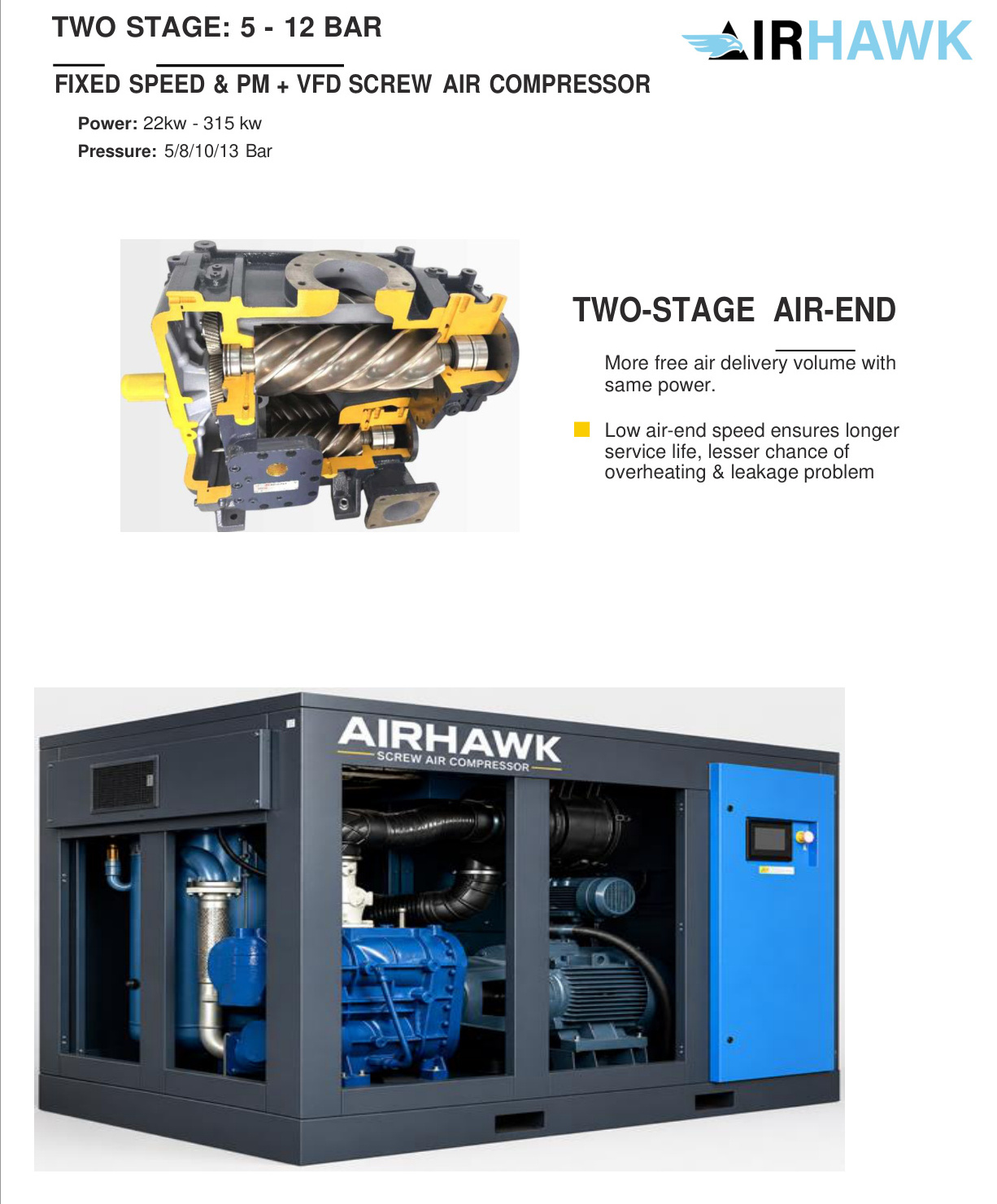

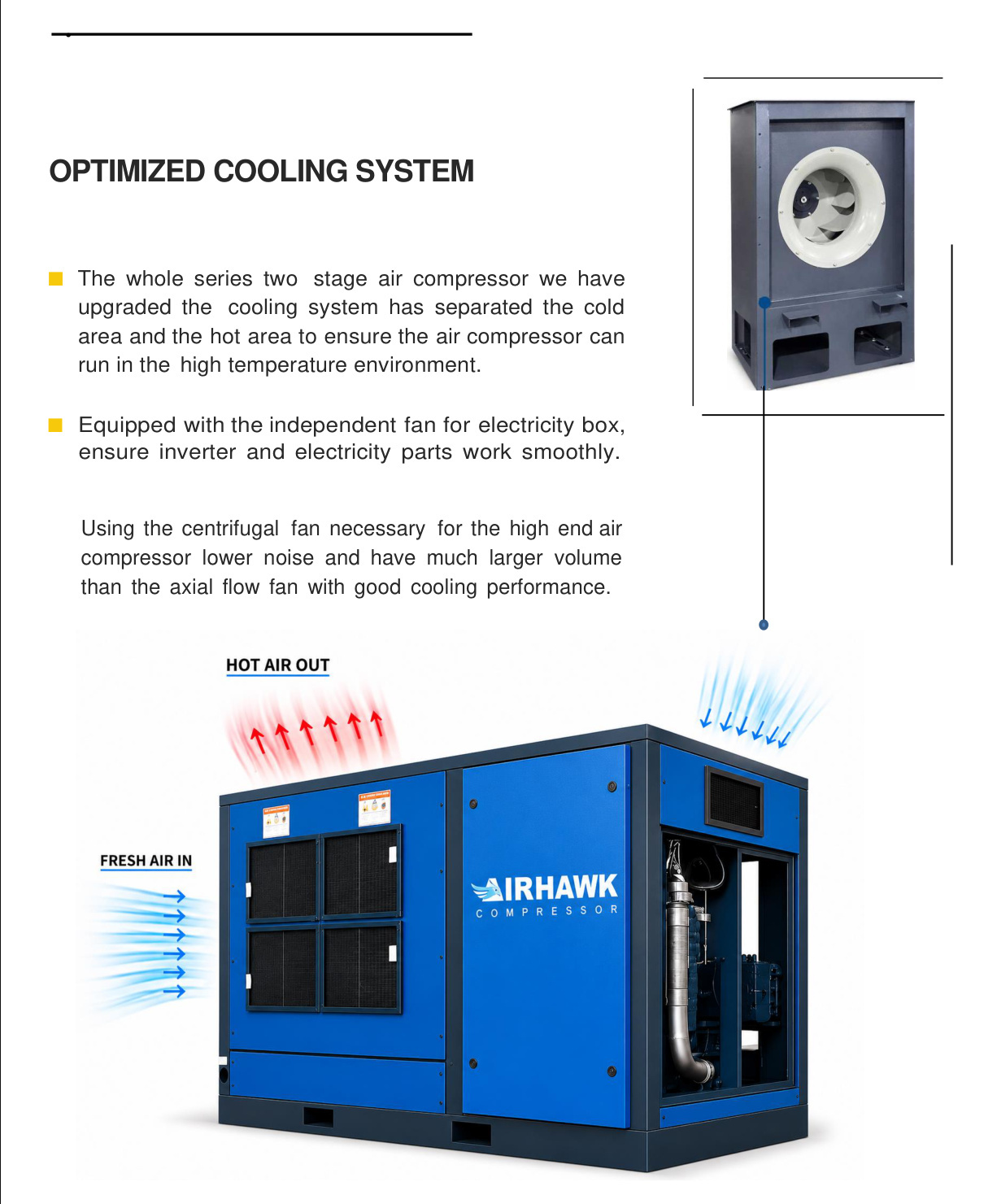

Two Stage 5-12 Bar Screw Air Compressor catalog page 06 . Two Stage 5-12 Bar Screw Air Compressor catalog page 07 . Two Stage 5-12 Bar Screw Air Compressor catalog page 08 .
