Refrigerant Air Dryer

Dryer

Refrigerated air dryer range for removing moisture from compressed air, helping protect downstream equipment and improve production quality.

Flow range: 20 to 1500 CFM
Pressure range: <= 1.6 MPa / 16 barg
Dew point: +3 deg C rated dew point
Cooling method: Air cooled
Power supply: 220V/1Ph/50Hz for smaller models, 415V/3Ph/50Hz for larger models

Dry compressed air helps reduce corrosion in air networks and tools.

Rated working conditions include 7 bar pressure, 45 deg C intake air, and 48 deg C ambient temperature.

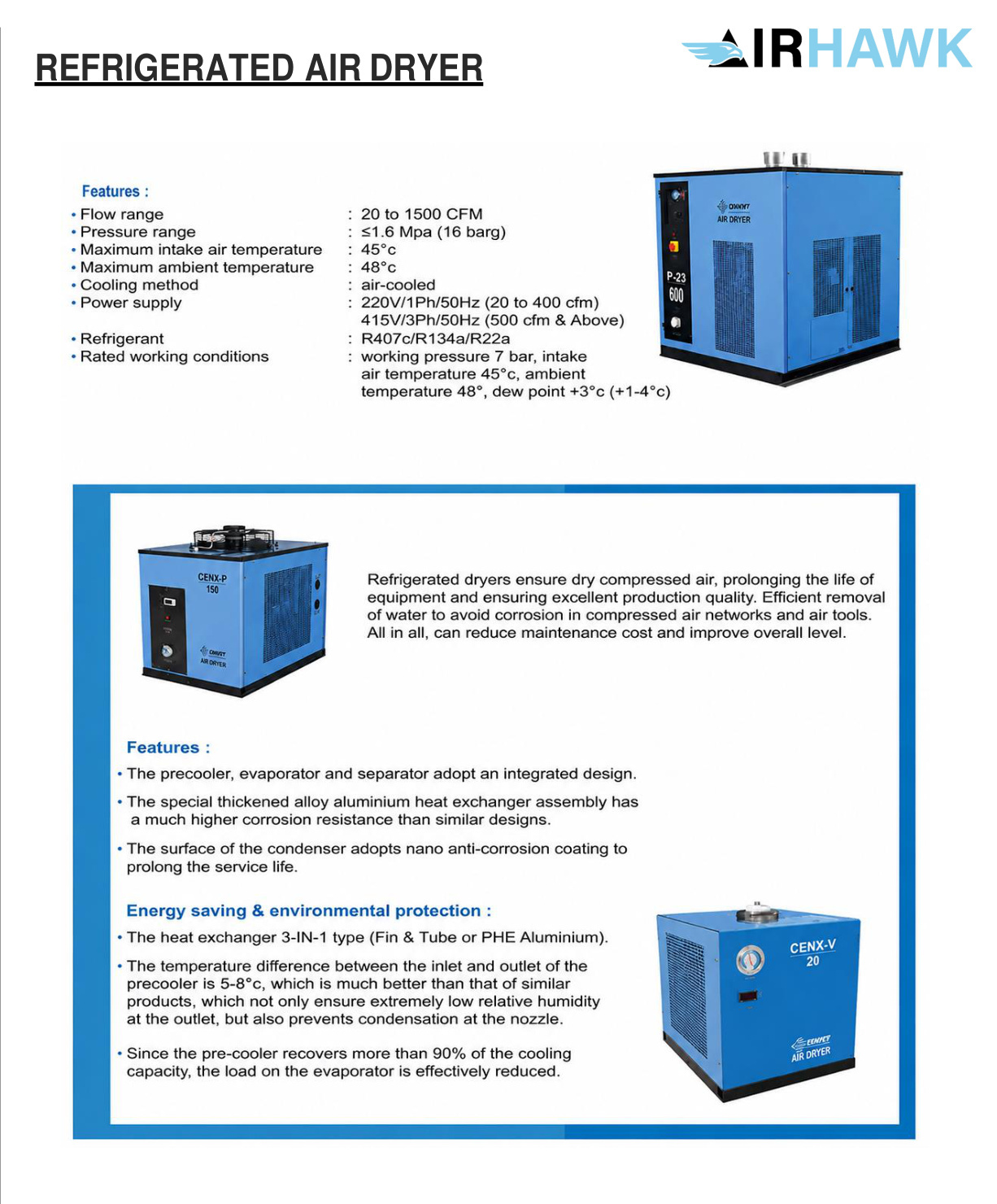

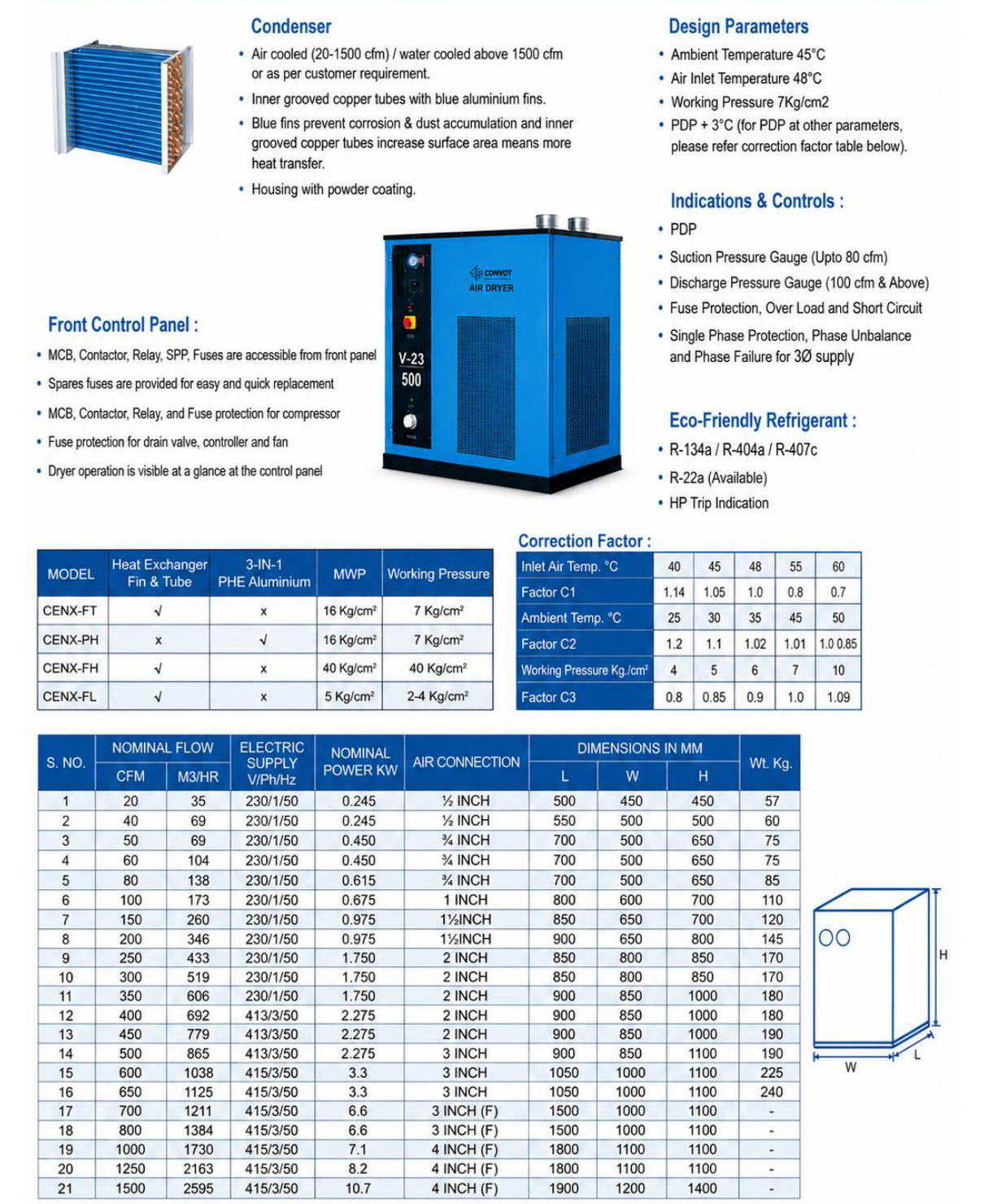

Catalog reference: pages 12 and 13.
