Line Air Filter

Air Treatment

Line Air Filter

Line filters available in different grades to remove particles, fluid oil, water, oil mist, vapor, and hydrocarbon smell from compressed air.

  • AO Filter: Pre-filter for particles bigger than 1 um and fluid oil/water collection
  • AA Filter: After-filter for vapor, oil mist, and particles bigger than 0.01 um
  • ACS Filter: Activated carbon filter for oil vapour and hydrocarbon smell
  • Max pressure: <= 1.6 MPa
  • Max temperature: <= 66 deg C operating temperature

Filter Grades

AO, AA, and ACS grades are shown in the catalog for different air-purity requirements.

Standard configuration includes shell, filter element, and automatic or electronic drain depending on type.

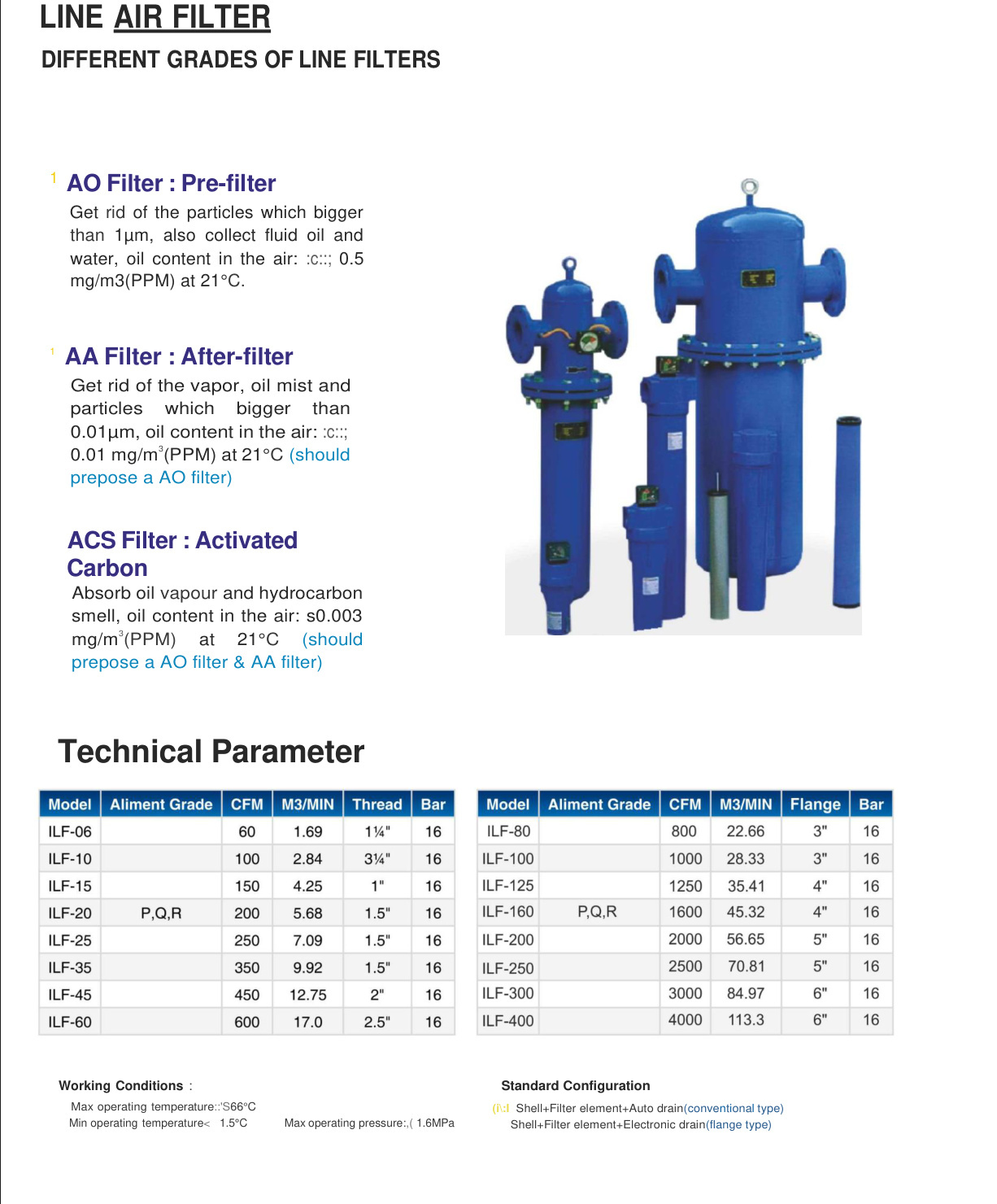

Catalog reference: page 16.

Line Air Filter catalog page 16 .
