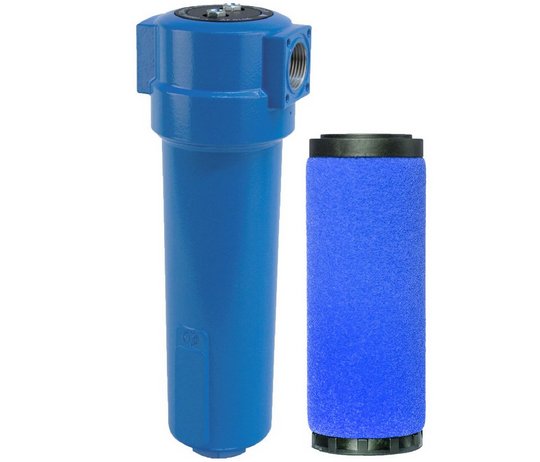

Air Filter

Working pressure: 0-16 bar

Capacity: 1.2-49.0 m3/min

Normally compressed air contains highconcentrations of dust, oil, moisture and therimpurities.

These contaminants can lead to high-maintenance costs and result in damageto equipment and finished products.

Ourfilters have been specifically designed toprevent these problems, by offering a widerange of filters for compressed air able tosatisfy the most various industry needs.

The high efficiency of the elements whichis able to offer a high capability of retention(99,999%) and very low pressure drops.

final result is an extremely purifiedcompressed air and low operating costs.

A partner to build your brand: A wide range of air compress can meet your different demands of different fields.
Working with you: We always work for supplying best quality, and service to our clients.
Reducing your cost: Small space usage, simplified installation, free on line tech. service, less energy consumption.

Air Filter Models:-

Model	Max. Flow Rate		Max. Operating Pressure		End Conn. (BSP)	Dimensions (mm)			Weight (Kg)
Model	m³/min	CFM	Kg/cm²	psi	End Conn. (BSP)	A	B	C	Weight (Kg)
AXF-16	0.99	35	12.5	178	½″	245	220	104	1.3
AXF-20	1.73	61	12.5	178	1″	315	290	104	1.5
AXF-24	2.89	102	12.5	178	1¼″	425	385	138	2.9
AXF-28	4.9	173	12.5	178	1½″	425	385	138	2.9
AXF-32	7.19	254	12.5	178	1½″	625	585	138	3.8
AXF-36	10.7	378	12.5	178	1½″	625	585	138	3.8
AXF-40	13.99	494	12.5	178	2″	685	640	150	9.5
AXF-44	19.11	625	12.5	178	2″	850	800	150	12.2
AXF-44	19.11	625	12.5	178	2½″	850	800	150	12.2
AXF-48	22	777	12.5	178	2½″	990	940	148	13.8
